SKU: 3510-04
Sold Individually

10" 250-Watt RMS 4Ω Car Audio Subwoofer

4.8 (13 reviews)
Availability: In stock
$129.95 MSRP
$109.95

Hard And Loud

Implementing many of the same features found on our 75 & 95 Series SuperWoofers, the 35 Series can rock hard and loud for extended periods of time, while maintaining accurate and clean bass throughout the party. You will be impressed.

The 3510-04 is a 10" single voice coil, 4 ohm, 250 watt Car Audio Subwoofer designed to deliver outstanding SPL and sound quality in an affordable combination of state-of-the-art MTX sub features...and it rocks.

Ask an expert Find a location
3510-04 Subwoofer

More Than You Expect

Economically priced subwoofers that deliver very impressive bass. Install one in a ported, or sealed, enclosure with a mono amplifier, be ready for "Kicka**" Sound that you wouldnt expect from a subwoofer.

"Get ready For UNBELIEVABLE, Breath Taking Bass"

3510-04 Subwoofer

The MTX Inverted Apex Surround

This subwoofer features a new Inverted Apex surround that increases surface area allowing for more air movement and higher SPL, and a progressive suspension that lowers distortion resulting in improvLow profileed sound quality. This subwoofer also incorporates Spider Plateau Venting which is a mechanical cooling process that targets cool air at the voice coil effectively managing the temperature for long term performance.

3510-04 Subwoofer

Great For Upgrades

35 Series subwoofers are ideal for improving the sound in any vehicle. Their low profile does not require a large enclosure so they are perfect for most vehicles.

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:

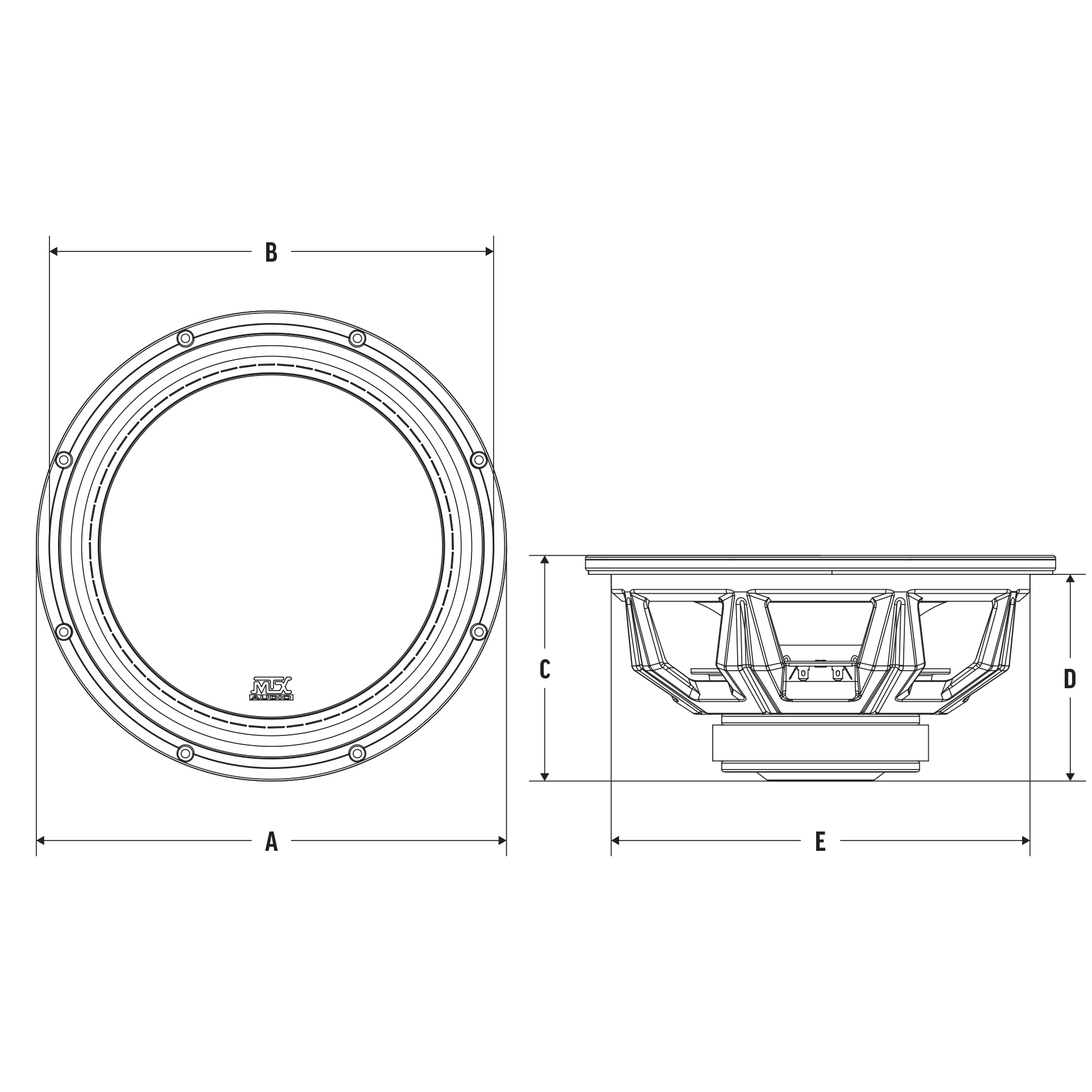

Dimensions & Details

Dimensions

  • A - Total Diameter:       10 ⁵⁄₁₆" (261.90mm)
  • B - Driver Diameter:      8 ⅞" (225.40mm)
  • C - Total Depth:             5 ⅛" (130.20mm)
  • D - Mounting Depth:    4 ¾" (121.30mm)
  • E - Cut Out Diameter:   9 ¼" (235mm)

What's in the Box

  • Subwoofer
  • Technical Data Sheet

Features

• 10-inch 4Ω Subwoofer
• 250 Watt RMS Power Handling
• Stamped Steel Basket
• Inverted Apex Surround
• Spider Plateau Venting
• 2" Copper Voice Coil

SPECIFICATIONS

  • Recommended Amp Power (RMS): 125 - 250
  • Impedance: 4Ω
  • Frequency Response: 28Hz - 130Hz
  • Sensitivity: 83.2dB
  • Voice Coil: 1.75" (4.45 cm)
  • Magnet Weight: 56 oz
  • Mounting Depth: 4 ¾" (121.30mm)
  • Cut Out Diameter: 9 ¼" (235mm)
  • Volume Displacement: 19.69 cu in
  • Sealed Enclosure Net Internal Volume: 0.75 cu ft
  • Vented Enclosure Net Internal Volume: 2.0 cu ft

Downloads

Reviews

  • Brian W. reviewed on 2/27/2026 10:45 AM
    Sku: 3510-04
    Great subwoofers!
    I just built a sealed enclosure for three of the 3510-04 subs and installed them in my son's car. They sound awesome. I must say that they are louder than I was expecting them to be. If you want great bass response but don't want to spend a lot of money, you won't be disappointed with the MTX 35 series subwoofers.
    0
  • Danville W.G. Deleveaux reviewed on 4/14/2025 5:00 PM
    Reviewed on Amazon
    Sku: 3510-04
    The performance of this item is exactly what I have expected and learned to appreciate from past experiences with the MTX Brand for which I am surely a Loyal customer.
    0
  • Joey Lepera reviewed on 12/12/2022 5:00 PM
    Reviewed on Amazon
    Sku: 3510-04
    Ive had 2 of these subs for about 8 months, and the first 6 or 7 I only had a 550 watt amp hooked up to them and they sounded pretty good, but i thought they had more in them so i upgraded to a 1000 watt amp. After about 2 weeks one had a power cable melt off the push terminal for it, which I fixed myself. Then a week later, the other one did the same. Now they don't quite sound the same as they used to but i've just decided to get a different brand now.
    0
  • Dave reviewed on 9/11/2022 5:00 PM
    Reviewed on Crutchfield
    Sku: 3510-04
    Perfect Replacement
    Perfect replacement for the MTX Thunder 4000, fits perfectly and sounds great. Thanks to Crutchfield and Paul at Crutchfield for his awesome support!
    0
  • Joshua reviewed on 8/18/2022 5:00 PM
    Reviewed on Crutchfield
    Sku: 3510-04
    MTX 3510-04
    Had a old pair of MTX truck box speakers, the woofers were old and falling apart so i called mtx and this is the speaker they recommended, so i order from crutchfield arrived three days later and replaced the old ones with these and let me tell you technology has come along way in 30 years these are great and sound wonderful, plus they fit right in the old boxes.
    0
  • Edward Hood reviewed on 6/5/2022 5:00 PM
    Reviewed on Amazon
    Sku: 3510-04
    One of the best things about MTX, is they consistently underrate their products. This sub is " rated " for 250 watts rms and 500 watts peak, but can easily handle 300 watts rms and around 600 watts peak. For those on a tight budget, but still wanting to add great bass to their car audio, I definitely recommend this sub.
    0
View More
