SKU: TN10-04

Sold Individually

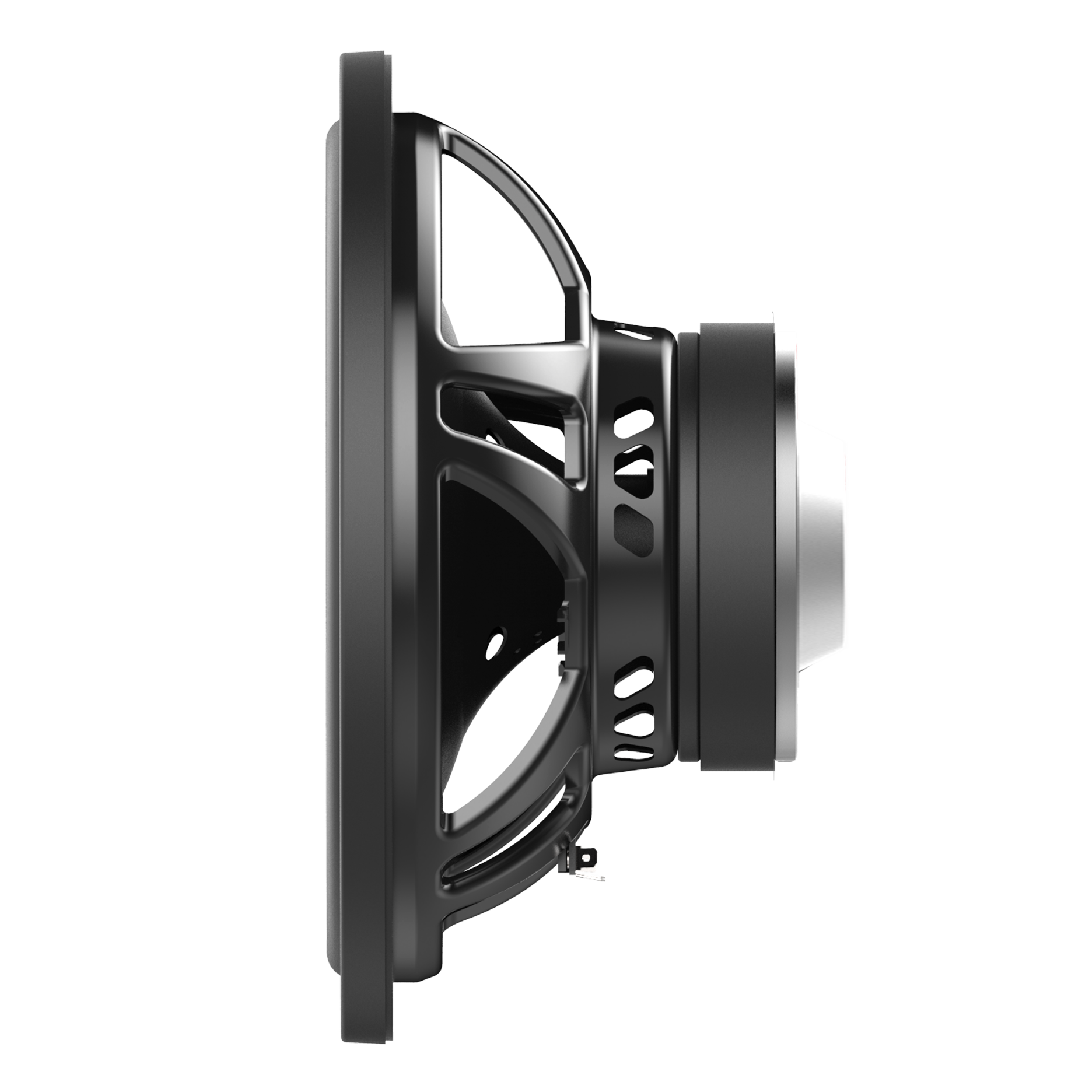

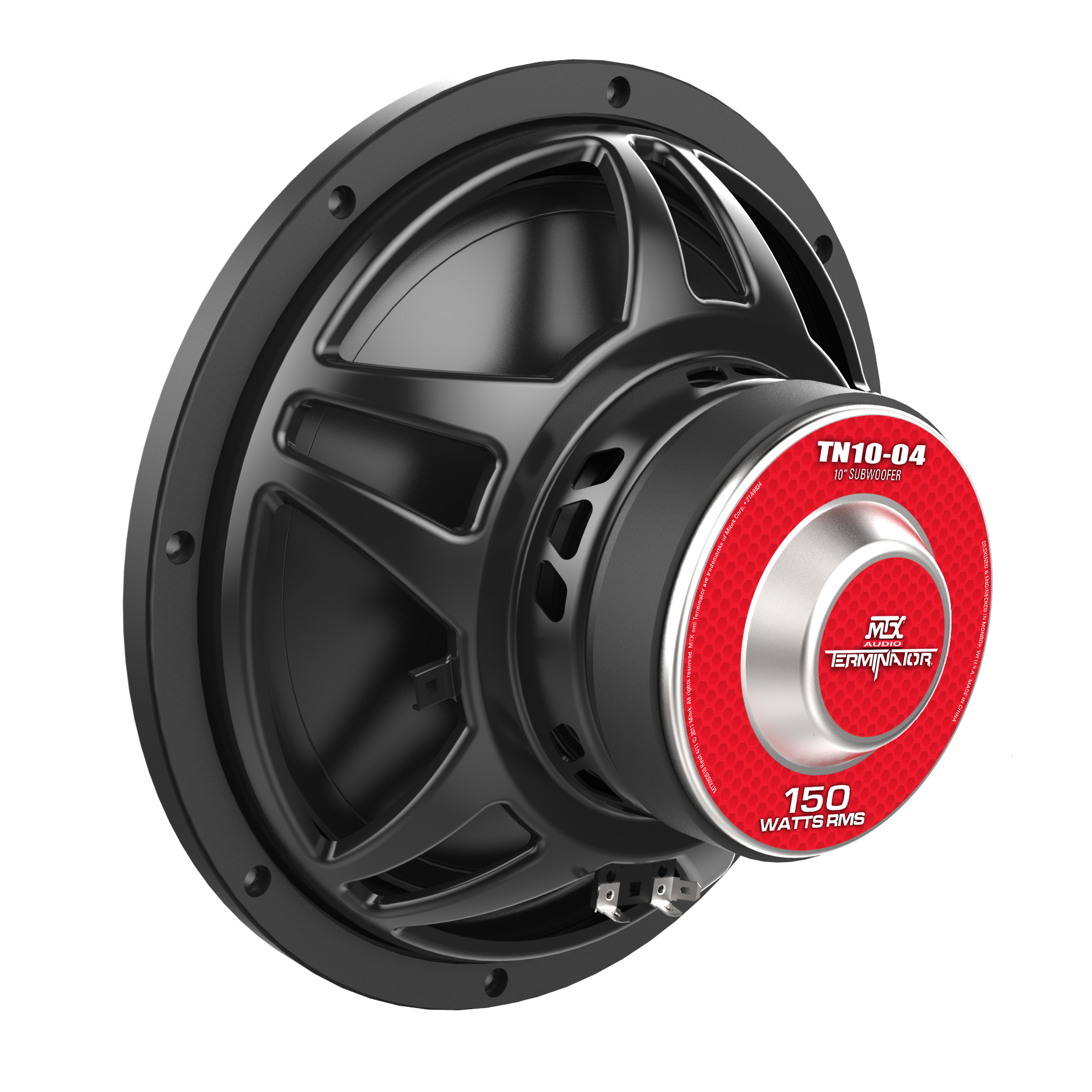

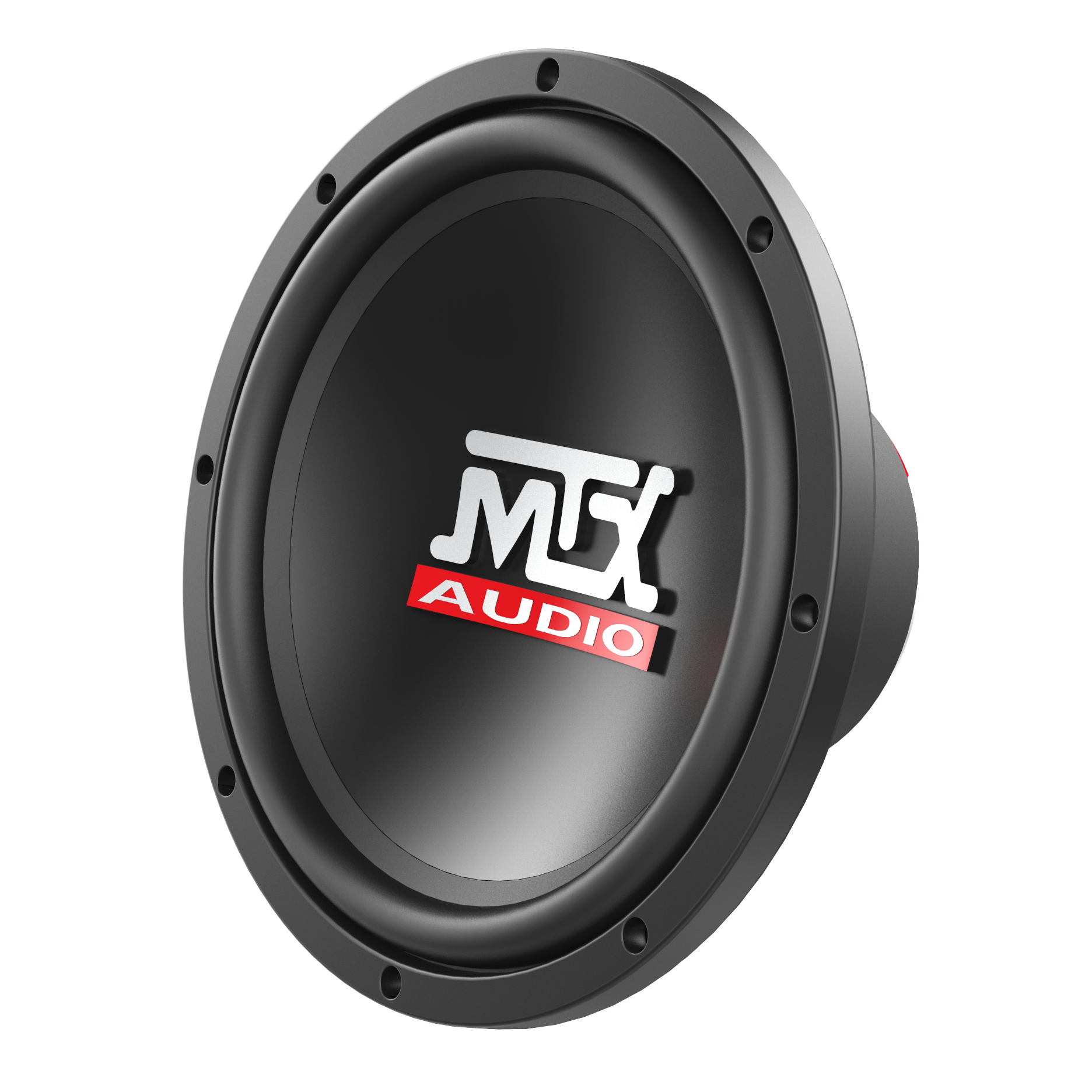

10" 150-Watt RMS 4Ω Subwoofer

4.8 (38 reviews)

Availability: In stock

$79.95 MSRP

$69.95

World Famous Sub

The classic Terminator Car Audio Subwoofer bangs out bass in rigs all over the world. Its economical price made it our most popular entry level sub over the last several years. And the Terminator still outperforms any sub in its class.

The MTX TN10-04 is a 10" single voice coil, 4 Ohm, 150 watt Car Audio Subwoofer that is economically priced but not short on performance.

Ask an expert Find a location

Spider Plateau Venting

Cools voice coil to prevent overheating.

Linear Drive Systems

Cone always moves linear, preventing distortion.

The Terminator Sub

The terminator subwoofer is loaded with MTX engineering technology including Spider Plateau Venting that ensures trouble free performance and an Assymetrical Linear Drive System that limits distortion ensuring unbeatable performance.

If you are looking for a great subwoofer that won't break your bank look no further. The Terminator sub is still one badass bass pounder...

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:

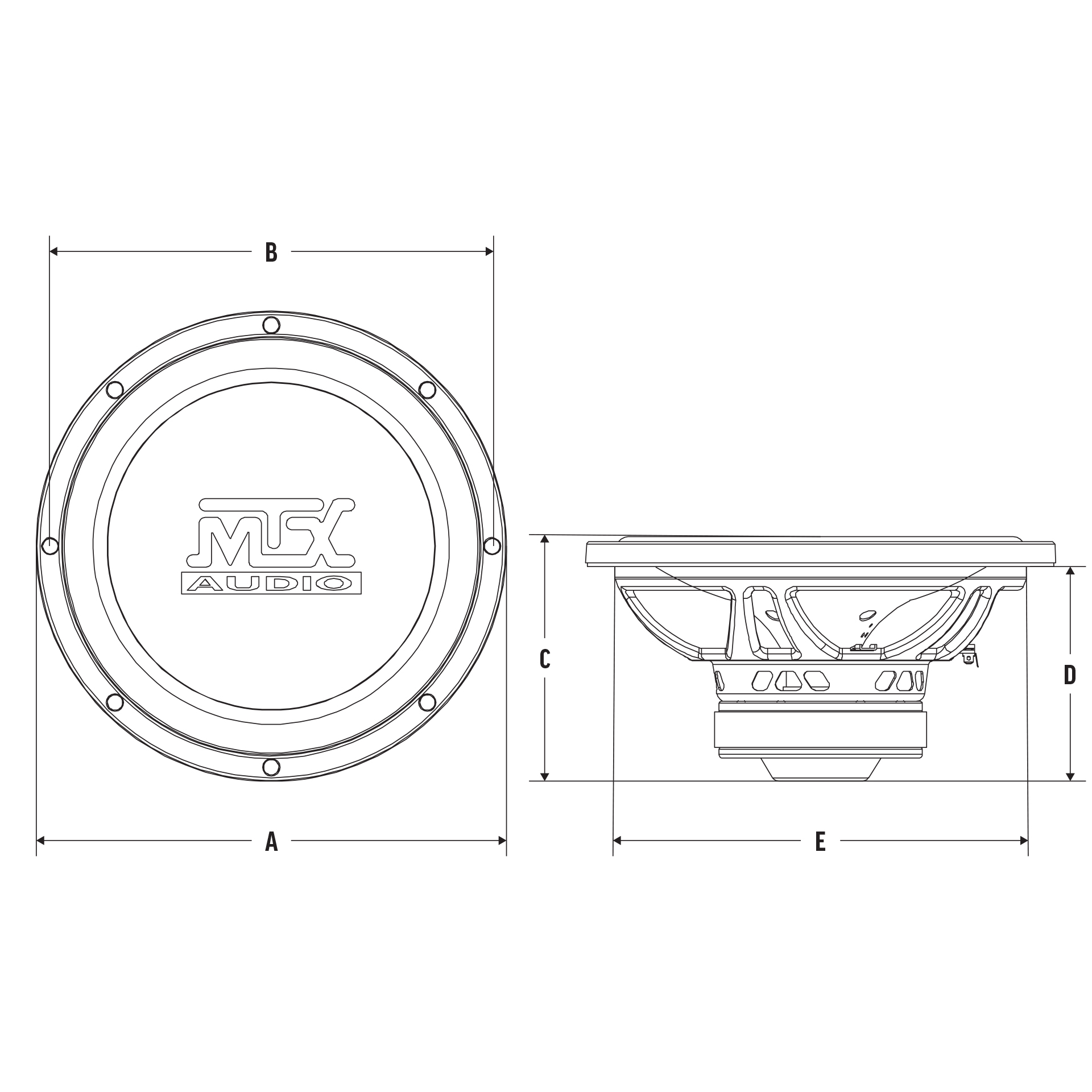

Dimensions & Details

Dimensions

A - Total Diameter: 10.47" (266mm)
B - Driver Diameter: 8.54" (217mm)
C - Total Depth: 5.34" (135.6mm)
D - Mounting Depth: 4.86" (124mm)
E - Cut Out Diameter: 9.19" (233mm)

What's in the Box

Subwoofer
Technical Data Sheet

Features

• 10-inch 4Ω Subwoofer

• 150 Watt RMS Power Handling

• Stamped Steel Basket

• Polypropylene Dust Cap

• Spider Plateau Venting

• Asymmetrical Linear Drive Systems

SPECIFICATIONS

Recommended Amp Power (RMS): 75 - 150
Frequency Response: 29Hz - 160Hz
Impedance: 4Ω
Sensitivity: 84.9dB
Voice Coil: 1.50" (3.81 cm)
Magnet Weight: 27 oz.
Mounting Depth: 4.86" (124mm)
Cut Out Diameter: 9.19" (233mm)
Volume Displacement: 21.21 cu in
Sealed Enclosure Net Internal Volume: 0.75 cu ft
Vented Enclosure Net Internal Volume: 1.45 cu ft
Warranty Period: 12 months from date of purchase

Downloads

- TN10-04Tech Data Sheet

View | Download
Test Tone - 50Hzmp3

Download

Reviews

Jeremy reviewed on 9/23/2025 5:00 PM

Reviewed on Crutchfield

Sku: TN10-04

So far so good

So far so good. I'm pushing 175 watts through the 10". Hopefully it holds out. Sounds good in the .75 box design MTX provided. ??

0
Brian reviewed on 8/2/2025 5:00 PM

Reviewed on Crutchfield

Sku: TN10-04

Clean bass

Good bass on a budget

0
Tyler reviewed on 7/13/2025 5:00 PM

Reviewed on Crutchfield

Sku: TN10-04

MTX TN10-04

They have very good bass for the price they are

0
Lucas reviewed on 4/22/2025 5:00 PM

Reviewed on Crutchfield

Sku: TN10-04

Father & Son Project Saved

My father gave me a pair of 15+ year old JL Audio subwoofers for my 19th birthday, but when we installed them they ended up falling apart. We were devasted but managed to find these MTX TN10-04s that fit perfectly in the box we had, and they had just the right power rating for the AMP as well. We ended up wiring them in parallel at 2 ohms mono-channel, and they sound great even before we're fully tuned them!

0
Andrew reviewed on 3/13/2025 5:00 PM

Reviewed on Crutchfield

Sku: TN10-04

It goes BoomBoomBoom

Minus one star to MTX themself for not supplying any mounting screws or having any indication on the terminals which is positive/negative (they are same size too) thus having to do polarity check and delaying installation. Works well with a bridged alpine amp I moved to my girlfriends car.

0
Jason reviewed on 4/28/2024 5:00 PM

Reviewed on Crutchfield

Sku: TN10-04

Great sub for the price

The subwoofer is well built for its cost. It has a great sound, warm tones and thumpy bass. The wire terminals are on the flimsy side but for the price it's on par.

0
