400-Watt RMS 4-Channel Class A/B Amplifier

Feel the Thunder

MTX THUNDER..A name synonymous with car audio for over 20 years has become known for power, performance, and reliability. The THUNDER line of amplifiers has seen numerous technological advancements throughout its life and continues to be one of the most recognized and sought after products in the car audio world today.

The MTX THUNDER75.4 4-channel amplifier is the product of many of those advancements. It delivers the music to your speakers creating a true “Concert Level Sound” without losing any fidelity or quality.

Ask an expert Find a location

Small in Size, Big in Power

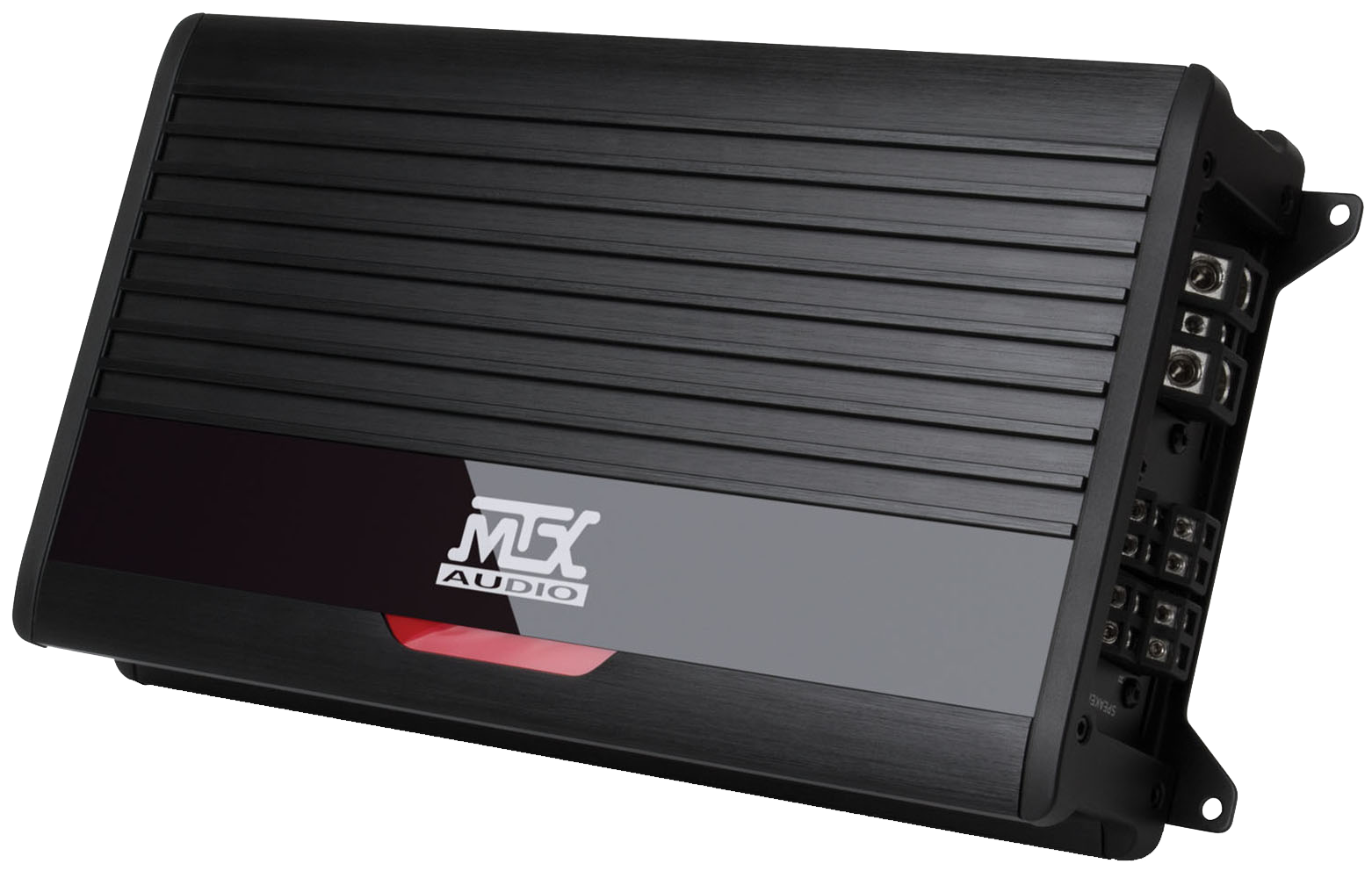

The THUNDER75.4 is a 400-watt RMS amplifier designed to be installed in almost any vehicle due to its small chassis size. Its power capability and wiring versatility makes it a perfect choice for running multi-channel speaker systems without compromising musical output or quality.

Technologically Advanced

This amp features a Class A/B circuit design that delivers high fidelity sound output meaning you can enjoy your music as the artist intended it to be heard. The multi-channel design also means that you can configure you speaker system the way you need without running out of power or functionality.

We use surface mount technology to help create the compact design of the amplifier and improve its reliability and resistance to vibration. High grade components are chosen for their quality and to ensure the amplifier delivers maximum power output when you need it without loss of audio resolution.

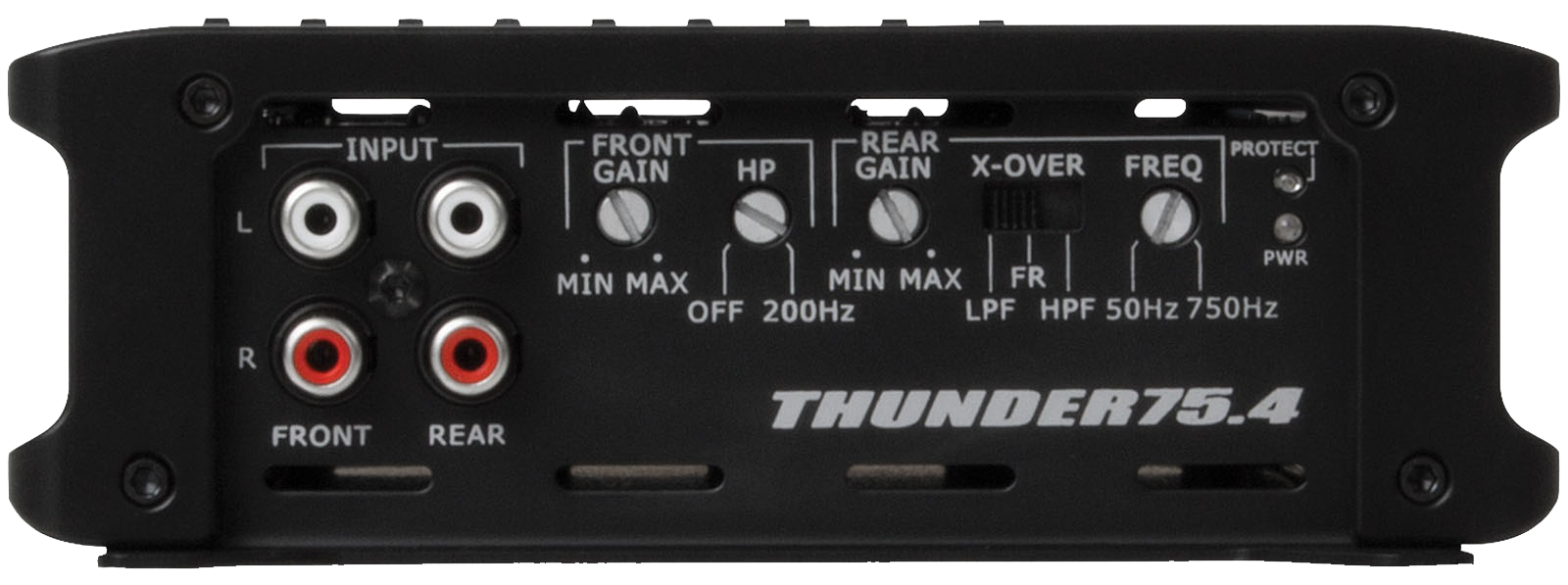

In addition to the circuit design, we’ve also added the features you need to fine tune your system sound such as the built-in variable gain and crossover controls.

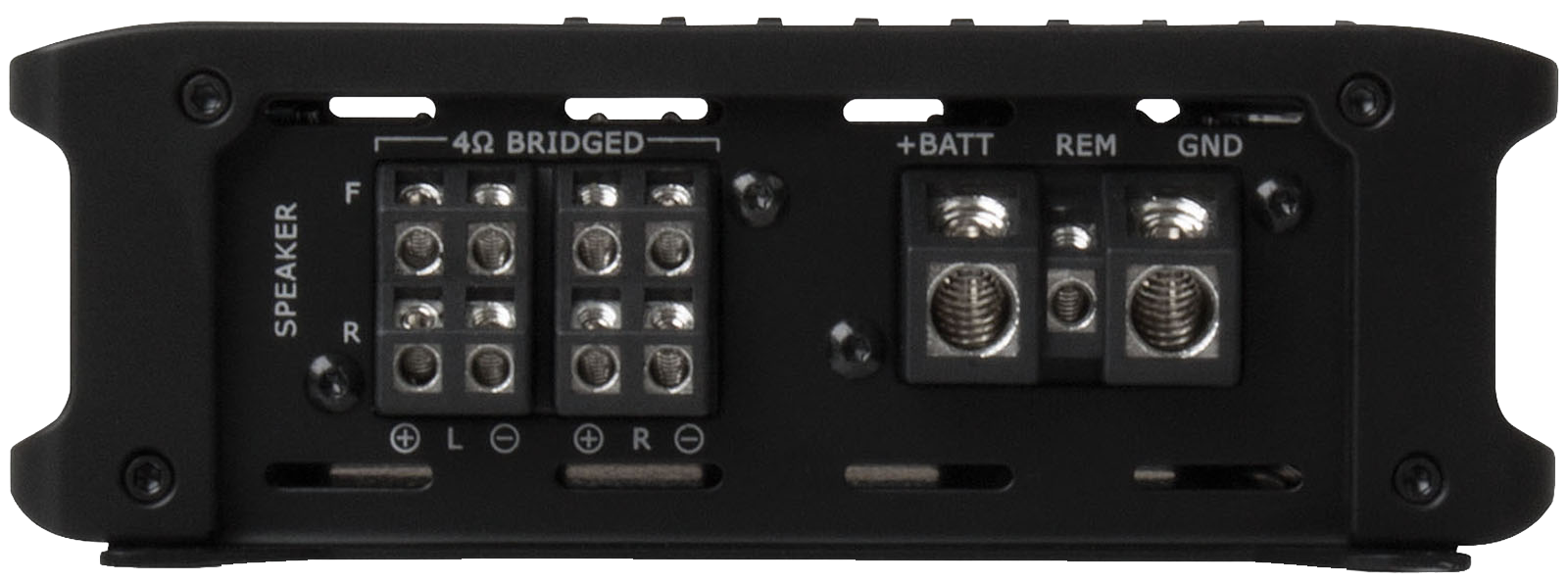

Additionally, we know how important the speaker and power connections are to a properly working sound system. This is why we use set-screw style terminals to provide the most secure connection possible which minimizes any power loss while delivering all the power to the amplifier and to the speakers.

Remember The Amp Kit

Remember, you cannot install an amplifier without an amplifier kit. MTX recommends using a ZN5K-04 or ZN5K-08 to power the THUNDER75.4.

Dimensions & Details

Dimensions

A - Length:

12.13" (308.5mm)
B - Width:

6.31" (160mm)
C - Depth:

2.25" (56.5mm)

Features

Compact Design - The small footprint chassis allows for installation in space challenged vehicles
Surface Mount PCB Design - Decreases chassis size, improves layout efficiency and increases vibration resistance without sacrificing performance or sound.
Variable Butterworth Crossover - a 12dB/Oct crossover that allows you to set the frequency your speakers will play down or up to
Triple Protection Circuitry - Thermal, DC Offset, and Short Circuit Protection circuitry ensures the amplifier will protect itself in the event of a problem
Extruded Aluminum Heat Sink - The custom heat sink design maximizes heat transfer away from the circuitry protecting the amplifier
Noise Free Design
MOSFET Power Supply

SPECIFICATIONS

Description: 4-Channel
4Ω RMS Power Output: 75W x 4 Channels
Signal to Noise Ratio: 80dB
2Ω RMS Power Output: 100W x 4 Channels
4Ω Bridged: 175W x 2 Channels
1Ω RMS Power Output: NA
Topology: Class A/B
THD: <1%
Frequency Response: 15Hz - 25kHz
Crossover: Variable LPF 50Hz to 750Hz (Rear), Variable HPF 10Hz-200Hz (Front), Variable HPF 50Hz-750Hz (Rear), 12dB/Oct
Max Sensitivity: 200mV
Maximum Input Signal: 5V
Height: 6.3"
Width: 12.13"
Depth: 2.25"
Warranty Period: 12 months from date of purchase

Reviews

Bradley reviewed on 5/1/2023 5:00 PM

Reviewed on Crutchfield

Sku: THUNDER75-4

why did i wait so long?

So crisp and clean. Just plain ole good clean power. I have it driving two 6x9's and two 6.5's and its as clean as I have had in years. No background noise or buzzing.

0
Michael reviewed on 11/27/2022 5:00 PM

Reviewed on Crutchfield

Sku: THUNDER75-4

Great amp

Stoked on this amp! Got it installed over the holiday weekend and had zero issues. Powering the kickers fantastically.

0
Crutchfield customer reviewed on 10/3/2021 5:00 PM

Reviewed on Crutchfield

Sku: THUNDER75-4

Improved Sound

If your just trying to improve sound and performance of you stereo system this MTX amp will do just that. It fit right under my passenger seat of 98 Subaru Outback. And with the kicker speakers I purchased it sounds like a concert inside my car. Once you get all the figures right tuning the amp with a multimeter is a piece of cake. Rock ON!

0
Crutchfield customer reviewed on 4/23/2021 5:00 PM

Reviewed on Crutchfield

Sku: THUNDER75-4

Really nice amp

Great amp, powers my infinity speakers very nicely.

0
V reviewed on 3/11/2021 5:00 PM

Reviewed on Crutchfield

Sku: THUNDER75-4

Great 4 channel amplifier

It's a great amplifier for your mids and highs. It replaced a Dual Electronics class d 4 channel amplifier. First thing I noticed was the dead silence. The prior amp had a slight hiss just turning it on. Class ab amplifiers for your front stage is much better in my opinion. Has enough power to keep up with my Kicker KXA1600.1 and 2 12" Nep Audio subwoofers in a ported enclosure tuned to 31Hz. Sounds great, always loved MTX car amplifiers.

0
Crutchfield customer reviewed on 10/30/2020 5:00 PM

Reviewed on Crutchfield

Sku: THUNDER75-4

MTX THUNDER75.4

Great amp at a great price! Does the advertised wattage and more!

0

Returns & Warranty

30-Day Money-Back Guarantee

At MTX Audio, we are serious about sound®. Therefore, if you are not "blown away" with your purchase, for any reason, you can return any items purchased directly from MTX.com that are complete and like new within 30 days. Products purchased from authorized MTX retailers must be returned through that same retailer. Products purchased through non-authorized MTX retailers may not be returned.

About Returns

Warranty Information

The warranty for THUNDER75-4 is 12 months from the date of purchase.

MTX products purchased in the USA from an authorized MTX dealer are guaranteed against defects in material and workmanship for the period of time specified below, the warranty period begins the day the product is purchased by the end user. This warranty is limited to the original retail purchaser of product and extends only to products purchased from authorized MTX resellers. Product found to be defective during that period will be repaired or replaced by MTX at no charge.

About Our Warranty
