500-Watt RMS Mono Block Class D Amplifier

MTX THUNDER..A name synonymous with car audio for over 20 years has a reputation for power, performance, and reliability. The THUNDER amplifier line has seen numerous technological advancements throughout its life and continues to be one of the most recognized and sought after products in the car audio world today.

The MTX THUNDER500.1 mono block amplifier is the product of many of those advancements making it perfect for that “Bass in your face” attitude.

Ask an expert Find a location

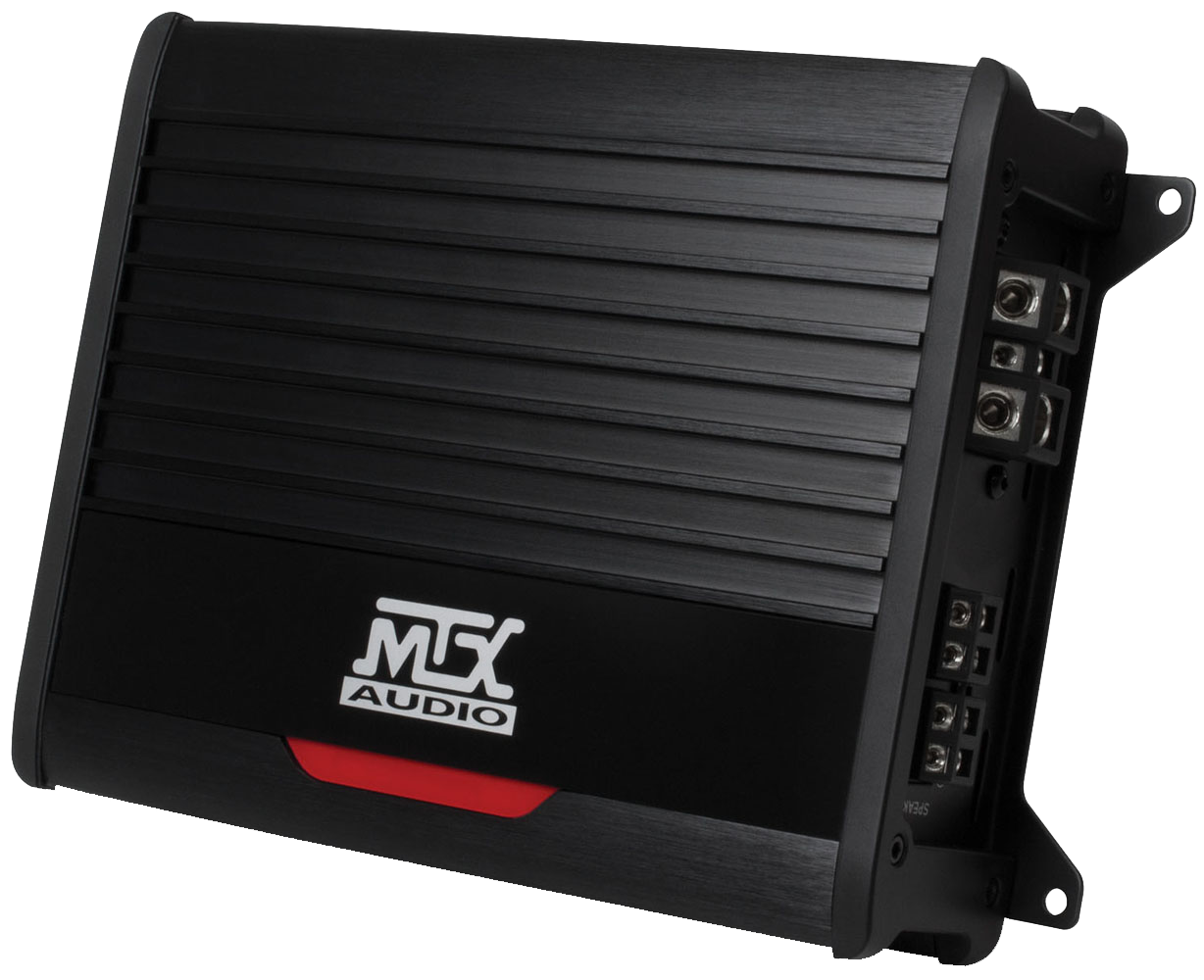

500-Watt RMS Mono Block Class D Amplifier

Made for Power, Built for Bass

The THUNDER500.1 is a high powered 500-watt RMS amplifier designed to be installed in almost any vehicle due to its small chassis size. Its power capability makes it a perfect choice for running single or multi-woofer sound systems without worrying about compromising bass output or quality.

Technologically Advanced

This amp features a high-efficiency Class D circuit design chosen for its ability to produce high output power while minimizing power loss to heat build-up. It’s this capability that makes it perfect for driving woofers to their limits and delivering that vehicle shaking bass you want.

It’s not just the circuit type that makes this amp tick, but also the parts used and how they are installed. We use surface mount technology to help create the compact design of the amplifier and improve its reliability and resistance to vibration. High grade components are chosen for the quality and to ensure the amplifier delivers maximum power output when you need it.

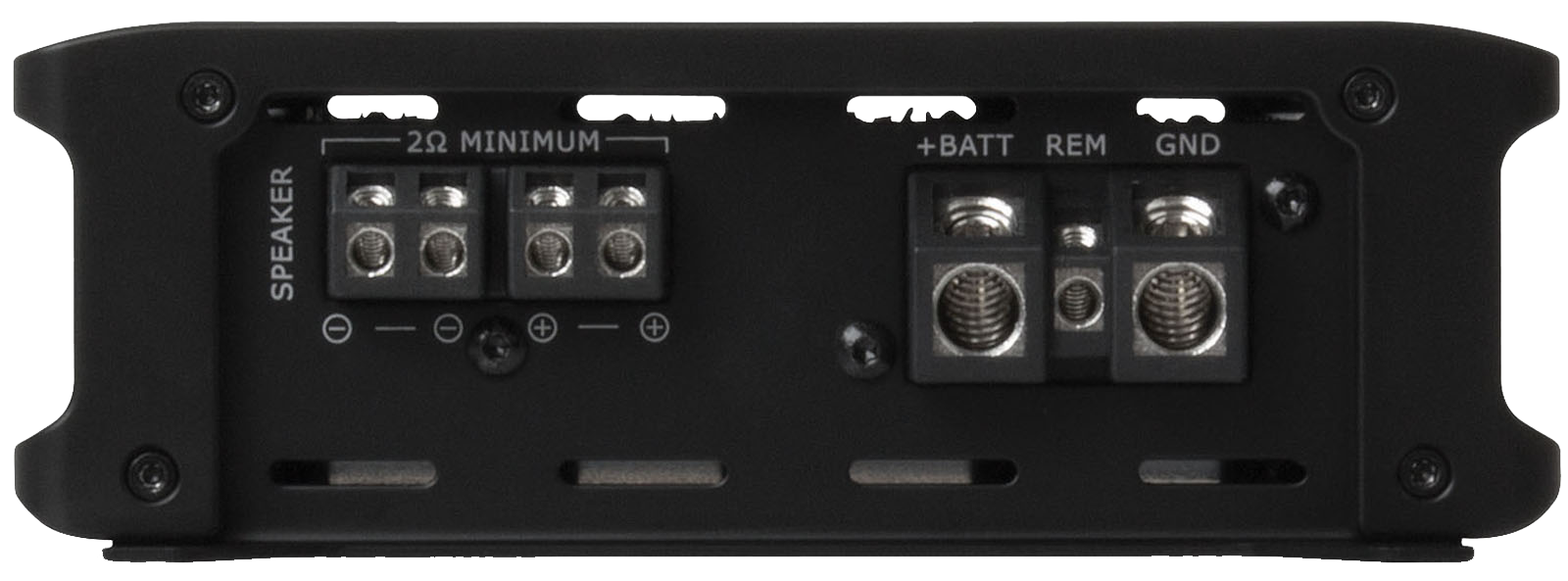

In addition to the circuit design, we’ve also added the features you need to fine tune your system sound such as the built-in variable low pass crossover, selectable bass boost circuit and variable subsonic filter. Additionally, we know how important the speaker and power connections are to a properly working sound system. This is why we use set-screw style terminals to provide the most secure connection possible which minimizes any power loss while delivering all the power to the amplifier and to the speakers.

Remember The Amp Kit

Remember, you cannot install an amplifier without an amplifier kit. MTX recommends using a ZN5K-04 or ZN5K-08 to power the THUNDER500.1.

Dimensions & Details

Dimensions

A - Length:

8.94" (227.5mm)
B - Width:

6.31" (160mm)
C - Height:

2.25" (56.5mm)

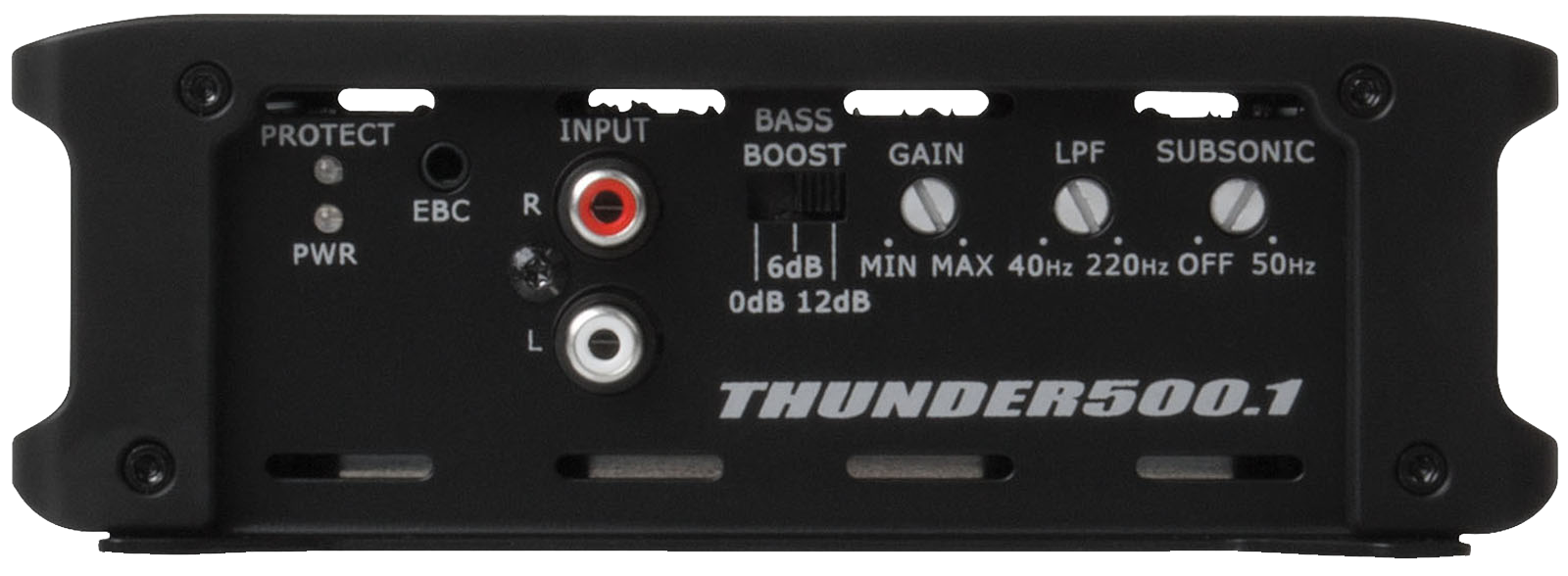

Features

Compact Design - The small footprint chassis allows for installation in space challenged vehicles
Selectable Bass Boost - Selectable 0, 6, or 12dB bass boost centered @ 50Hz
Variable Butterworth Crossover - a 12dB/Oct crossover that allows you to set the frequency your speakers will play down or up to
Variable Subsonic Filter - A variable low frequency, high pass filter designed to block potentially damaging bass frequencies
Triple Protection Circuitry - Thermal, DC Offset, and Short Circuit Protection circuitry ensures the amplifier will protect itself in the event of a problem
Extruded Aluminum Heat Sink - The custom heat sink design maximizes heat transfer away from the circuitry protecting the amplifier
Surface Mount PCB Design - Decreases chassis size, improves layout efficiency and increases vibration resistance without sacrificing performance or sound.

SPECIFICATIONS

Description: Mono Block
4Ω RMS Power Output: 300W x 1 Channel
Signal to Noise Ratio: 80dB
2Ω RMS Power Output: 500W x 1 Channel
1Ω RMS Power Output: NA
Topology: Class D
THD: <1%
Frequency Response: 10Hz - 220Hz
Crossover: Variable Low @ 40Hz to 220Hz 12dB/Oct
Subsonic Filter: 10Hz to 50Hz 12dB/Oct Variable
Bass Boost: 0 6 12dB Switchable
Max Sensitivity: 200mV
Maximum Input Signal: 5V
Height: 6.3"
Width: 8.94"
Depth: 2.25"
Warranty Period: 12 months from date of purchase
