SKU: 5510-22
Sold Individually

10" 400-Watt RMS Dual 2Ω Car Audio Subwoofer

4.7 (12 reviews)
Availability: In stock
$189.95 MSRP
$169.95

High SPL Subwoofers

55 Series Subwoofers are high SPL subwoofers that deliver the most bass for your buck.

Implementing many of the same features found on our 75 & 95 Series SuperWoofers, the 55 Series can rock hard and loud for extended periods of time, while maintaining accurate and clean bass throughout the party. You will be impressed.

The 5510-22 is a 10″ dual voice coil, 400 watt, 2 ohm subwoofer built on the MTX tradition of getting more than expected. The 55 Series subs are often used in applications where bass levels are the most important factor. These subwoofers are designed to move air and go boom! They are true monsters of bass and are a great choice for anyone that really wants to be heard.

Ask an expert Find a location

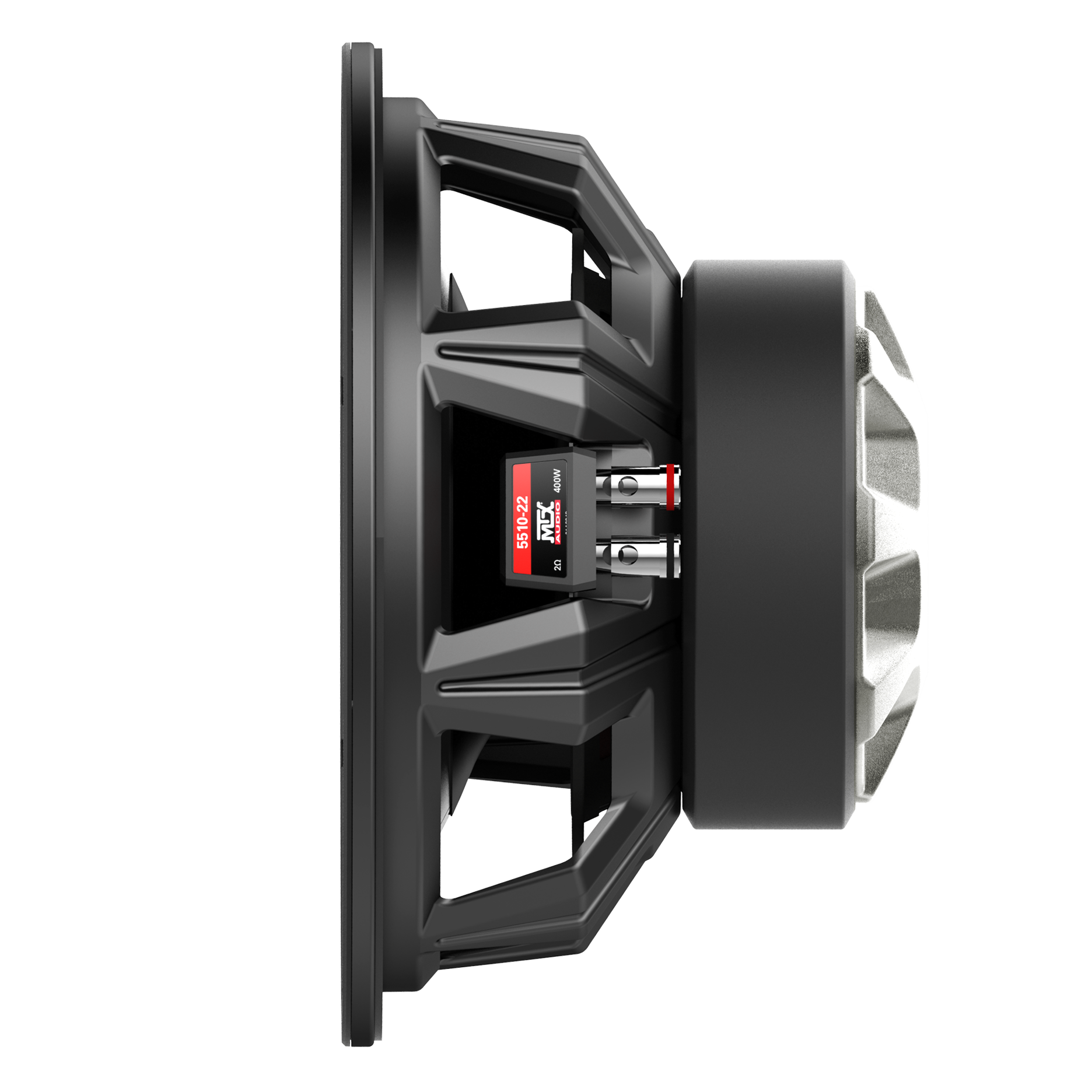

5510-22 Subwoofer

The 55 Series Legacy

The 55 Series, MTX's best selling subwoofer family, is a perfect mix of performance and value for enthusiasts that want to add extreme bass to their system without breaking the bank. We have squeezed an oversized cone into the standard 10", 12" and 15" frames, so the sub moves more air and gives you more bass. The woofer's movement cools the sub as it plays, so it doesn't overheat when you're rocking out. The special suspension exerts extra control when you're pushing the sub hard. Some would say that we've once again out done ourselves, but it only gets better and better.

If you want to have the best sounding, loud and pounding bass around and not break the bank, then the 55 Series is your subwoofer. Whether you have space for 10, 12 or 15 inch, we have the Bass For you!

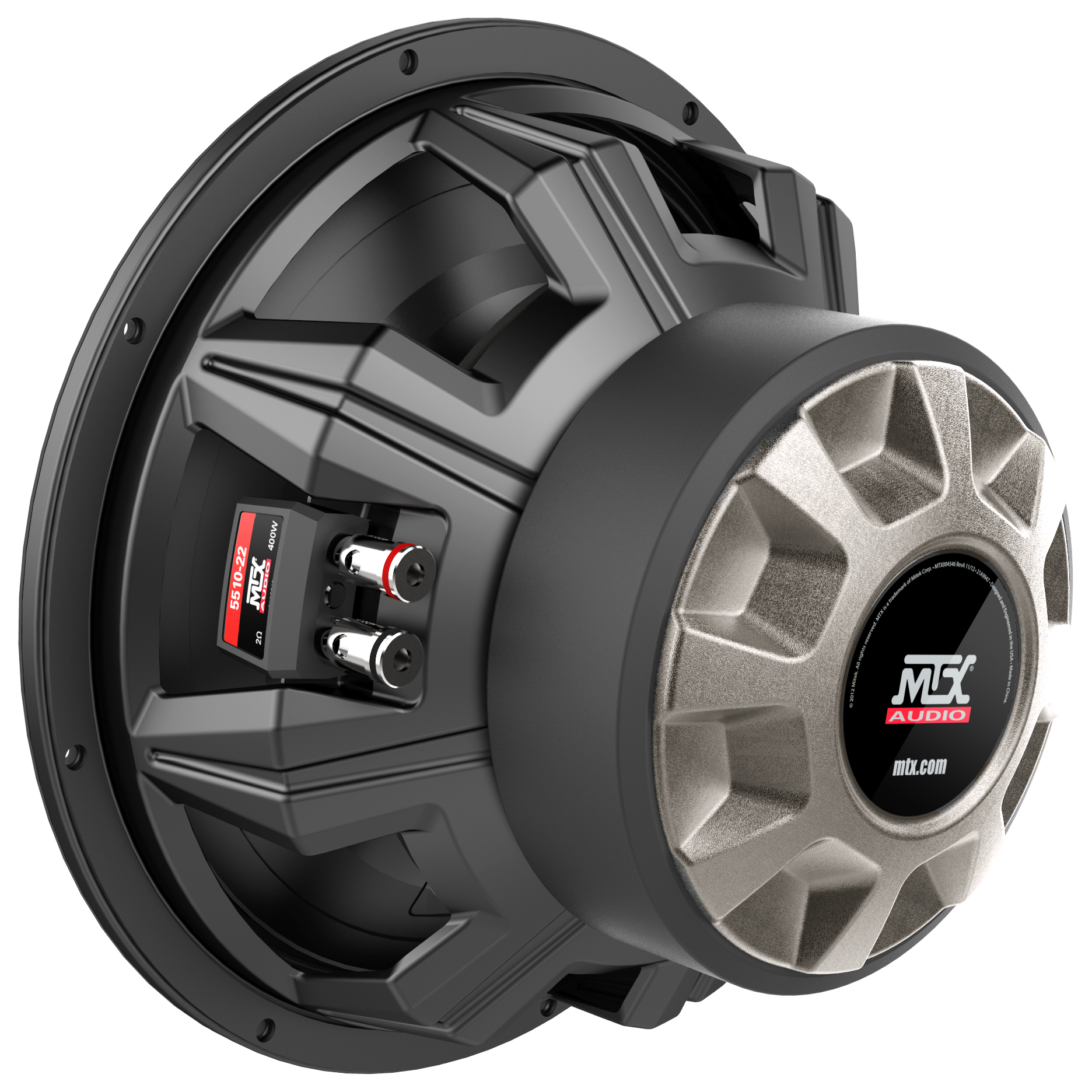

5510-22 Subwoofer

The MTX Inverted Apex Surround

This subwoofer features the MTX Inverted Apex Surround. This is a departure from a traditional half roll surround. The Inverted Apex is narrower thereby increasing the surface diameter of the subwoofer cone enabling it to displace more air and generate higher SPL. The 55's are designed with a progressive suspension that lowers distortion resulting in improved sound quality even at high volume.

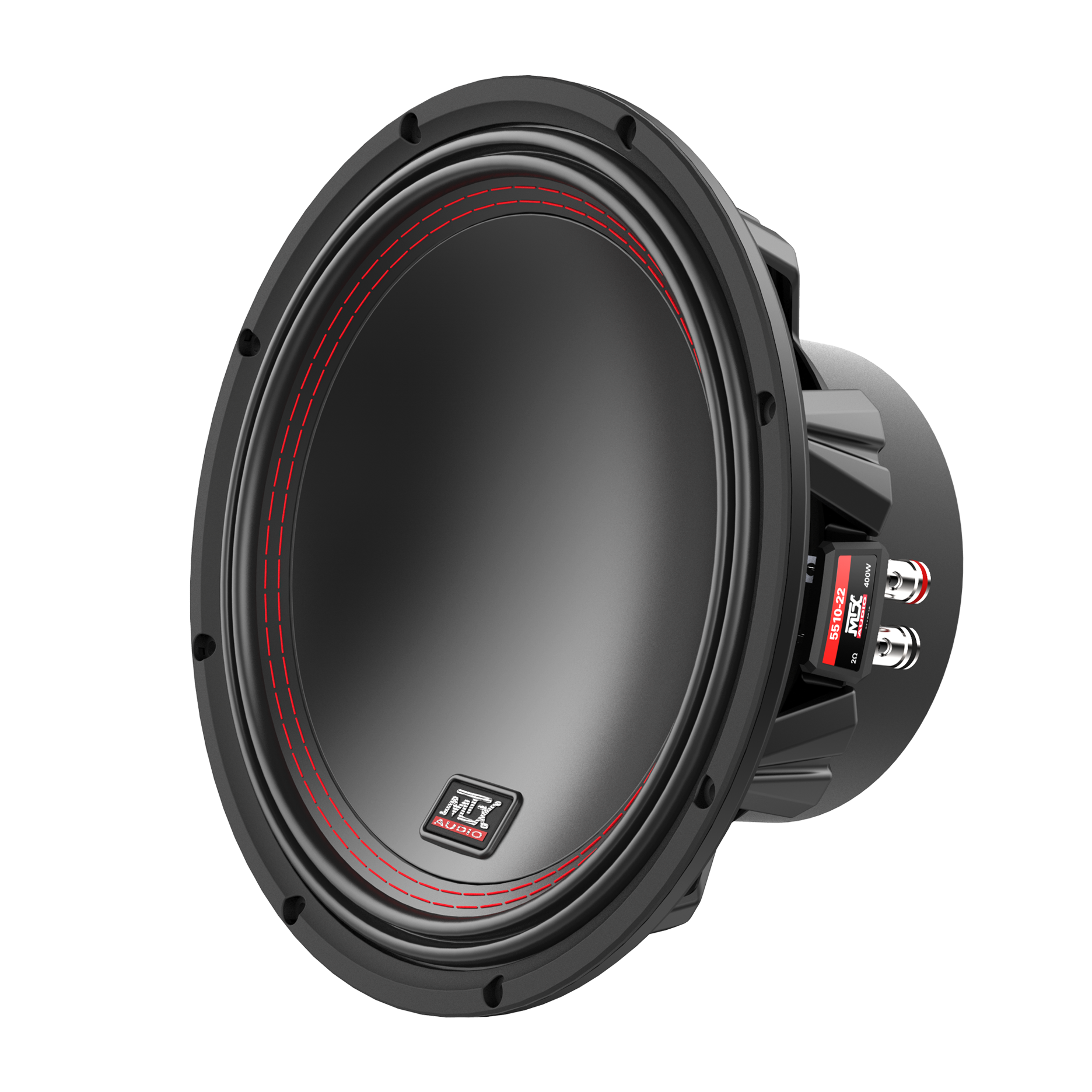

5510-22 Subwoofer

55 Series Spider Plateau Venting

This subwoofer also incorporates Spider Plateau Venting which is a mechanical cooling process that targets cool air at the voice coil and a radial ribbed t-yoke that acts as a heat sink effectively managing the subwoofer temperature for long term rocking performance.

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:



Dimensions & Details

Dimensions

  • A - Total Diameter:       10 ⁵⁄₁₆" (261.90mm)
  • B - Driver Diameter:     8 ¹¹⁄₁₆" (220.60mm)
  • C - Total Depth:            6 ¹⁄₁₆" (154mm)
  • D - Mounting Depth:   5 ⅝" (142.9mm)
  • E - Cut out Diameter:  9 ⁵⁄₁₆" (236.5mm)

What's in the Box

  • Subwoofer
  • Technical Data Sheet

Features

• 10-inch Dual 2Ω Subwoofer
• 400 Watts RMS Power Handling
• Stamped Steel Basket
• Inverted Apex Surround
• Spider Plateau Venting
• Integrated T-Yoke Heat Sink
• 2.0" Copper Voice Coil

SPECIFICATIONS

  • Recommended Amp Power (RMS): 200 - 400
  • Frequency Response: 29Hz - 130Hz
  • Impedance: Dual 2Ω
  • Sensitivity: 83.1 dB
  • Voice Coil: 2" (5.08 cm)
  • Magnet Weight: 56 oz
  • Mounting Depth: 5 ⅝" (142.9mm)
  • Cut Out Diameter: 9 ⁵⁄₁₆" (236.5mm)
  • Volume Displacement: 35.0 cu in
  • Sealed Enclosure Net Internal Volume: 0.75 cu ft
  • Vented Enclosure Net Internal Volume: 1.2 cu ft

Downloads

Reviews

  • E.G reviewed on 12/1/2025 5:00 PM
    Reviewed on Amazon
    Sku: 5510-22
    Works
    0
  • Dustin reviewed on 12/24/2023 5:00 PM
    Reviewed on Crutchfield
    Sku: 5510-22
    Respectable bass capable of fitting in a small footprint.
    I had a tall expectation, with limited installation options that would fit my needs. Was able to put this in an overall enclosure, with it still performing very well. Completely satisfied with this speaker paired with a 500.1 Amp driving it.
    0
  • Drea reviewed on 1/10/2023 5:00 PM
    Reviewed on Amazon
    Sku: 5510-22
    Description says size 12 but they sent size 10 so kinda useless for me , they do look nice and have decent weight
    0
  • Stacey reviewed on 10/16/2022 5:00 PM
    Reviewed on Crutchfield
    Sku: 5510-22
    MTX 5510-22
    Kicking little sub! 400w rms and I have it wired to one ohm with my amp putting out 800+rms . This thing is pounding in a sealed 0.8 cube box. Pretty impressive for what it is.
    0
  • Ricardo reviewed on 1/24/2022 5:00 PM
    Reviewed on Crutchfield
    Sku: 5510-22
    MTX 5510-22
    I've had these subs for about 6 months and they're great nothing wrong with them yet, the bass is crazy it looks like my windows are on the verge of breaking every time I bump Drizzy or Ye, overall I'm very satisfied with these 10's.
    0
  • Cody reviewed on 10/14/2021 5:00 PM
    Reviewed on Sonic Electronix
    Sku: 5510-22
    Good sound quality but short life
    I had this sub for 5 months in a sealed enclosure and powered by an sundown sfb600, at 1ohm. I have the amp set at about 250w(16v) output for the first 2 months to break in, the I turned it up to 400w(20v) output at 50hz. It lasted a few months and now at lower volume you can hear a vibrating/rattling noise coming from the sub. This is my first mtx sub and I figured the quality would be as good as their amps, but it's not
    0
